How to draw a flood hydrograph. Students are asked to draw and analyse the flood hydrograph from the excel file data 3a. Alternatively students may analyse the completed hydrograph data 3b. Use this infographic to help you understand what a flood hydrograph is and how to analyse on in a geography exam.

Discuss the role of these factors. Click on one of the rainfall bars to select them all 2. To join up the rainfall bars (like you usually see on a flood hydrograph):

Also, list three important factors that affects a flood hydrograph. This helps to understand discharge patterns of a particular drainage basin and helps to predict flooding and plan flood prevention. Also, list three important factors that affects a flood hydrograph.

This is shown in the rising limb. Draw a typical flood hydrograph and explain all its main components. This type of hydrograph is known as a storm or flood hydrograph and it is generally drawn with two vertical axes.

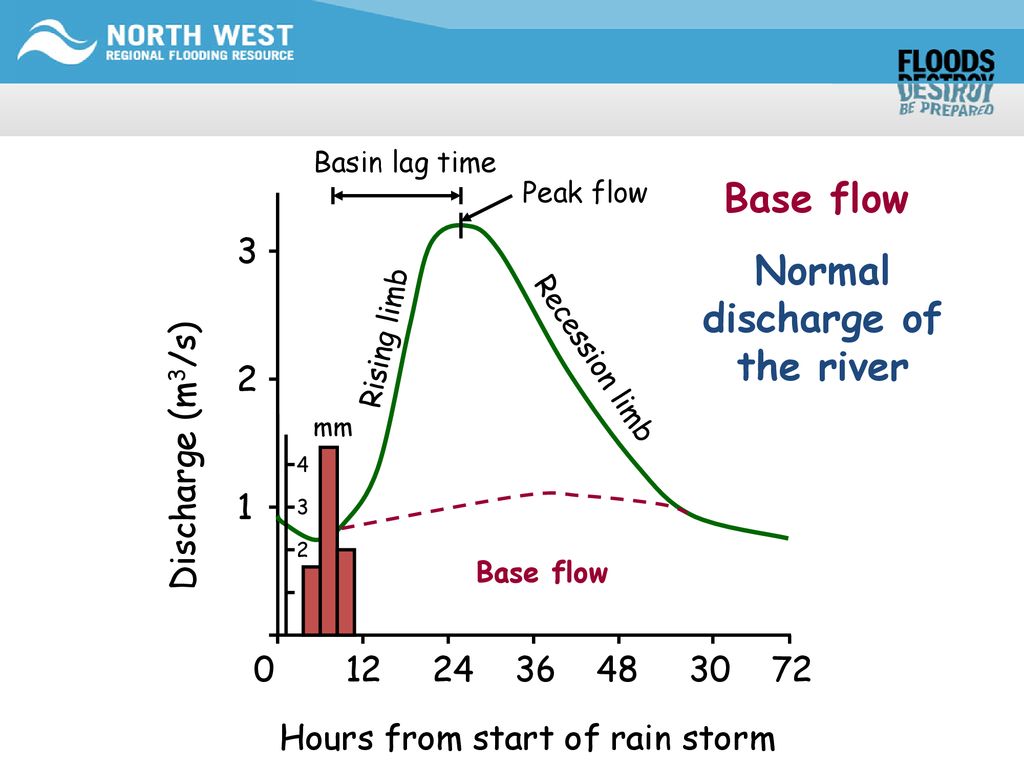

A hydrograph shows how a river responds to a period of rainfall. The highest point in the curve is the peak discharge. One is used to plot a line graph showing the discharge of a river.

This method consists of drawing a straight line from the beginning of the surface runoff to an arbitrary point on the recession limb, representing the end of the direct runoff.
